| Type | Output Constant Current | Power | Order Code |
| CONTROLED 24V 16-24xLED Setting 50% | 0,44A / 0,21A | 45W | 267-B-19-01-00 |
| CONTROLED 24V 6-12xLED 350mA | 0,35A | 15W | 267-B-25-01-00 |
| CONTROLED 24V 2-5xLED Setting 50% | 0,61A / 0,3A | 14W | 267-B-35-01-00 |
| CONTROLED 24V 2-5xLED | 0,61A | 14W | 267-B-36-01-00 |
| CONTROLED 110V 6-12xLED | 0,56A | 25W | 267-B- TBD |
| CONTROLED 110V 16-24xLED | 0,47A | 45W | 267-B-01-55-00 |
| CONTROLED 110V 8-15xLED | 0,52A | 35W | 267-B-01-54-00 |
| CONTROLED 110V 4-7xLED | 0,52A | 18W | 267-B-01-53-00 |
| CONTROLED 110V 1-3xLED | 0,5A | 7W | 267-B-01-52-00 |
| CONTROLED 24V 2-5xLED Setting 50% | 14W | 267-Z-35 |
SEC Elektronik Balast

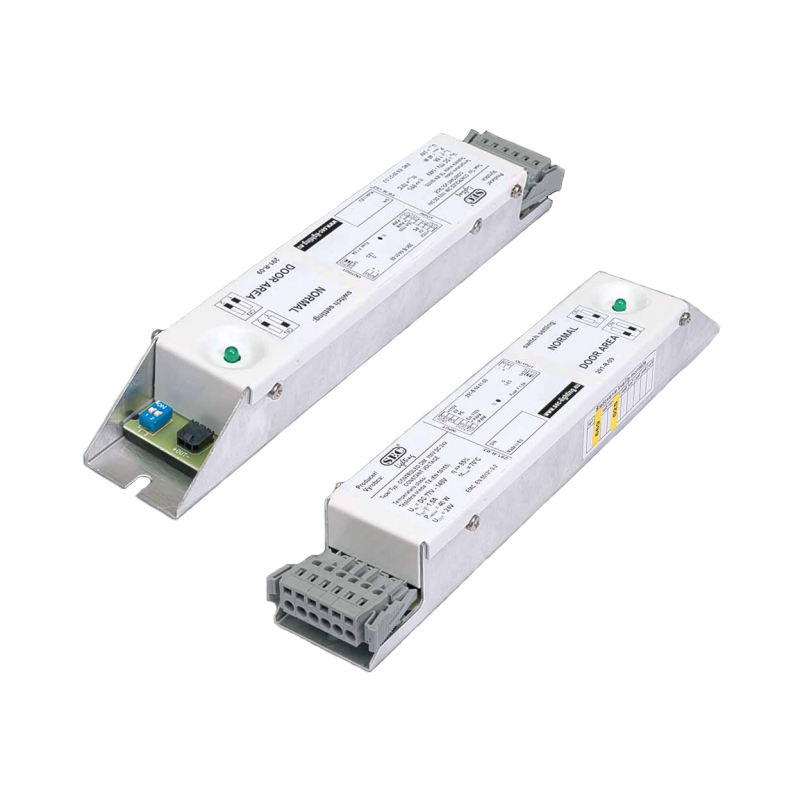

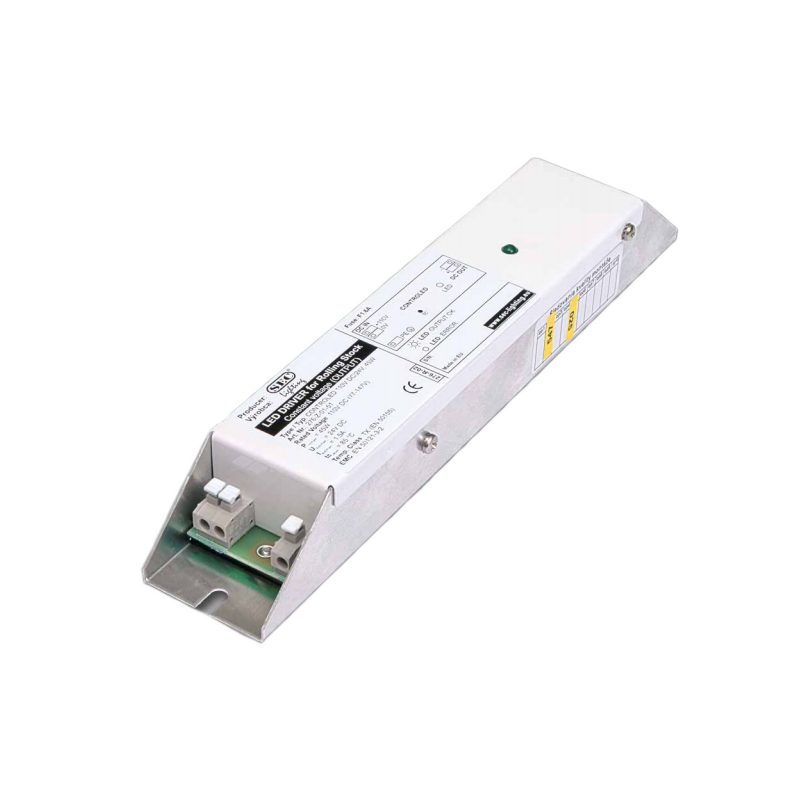

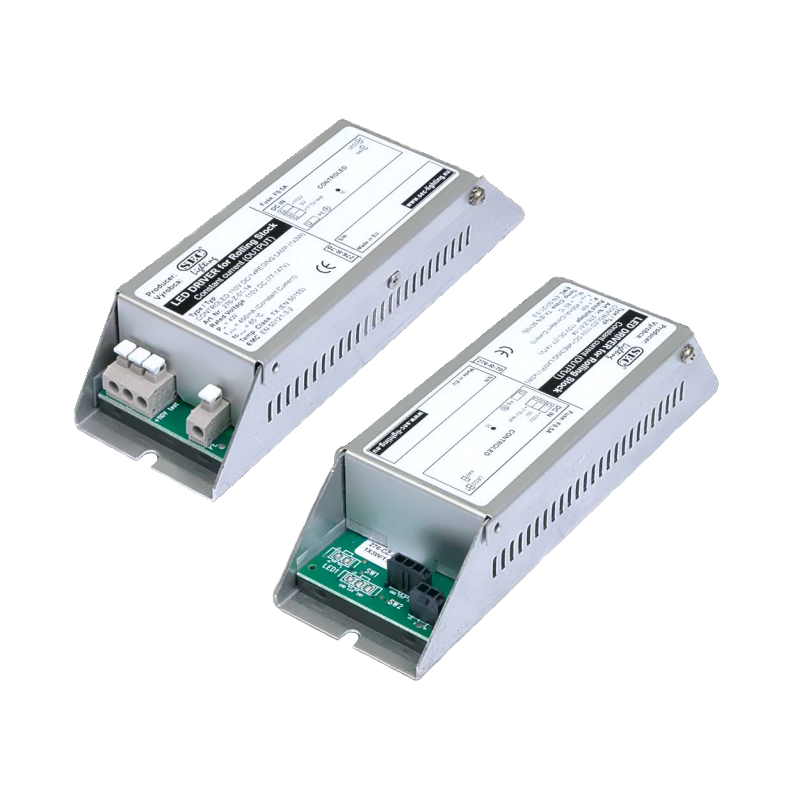

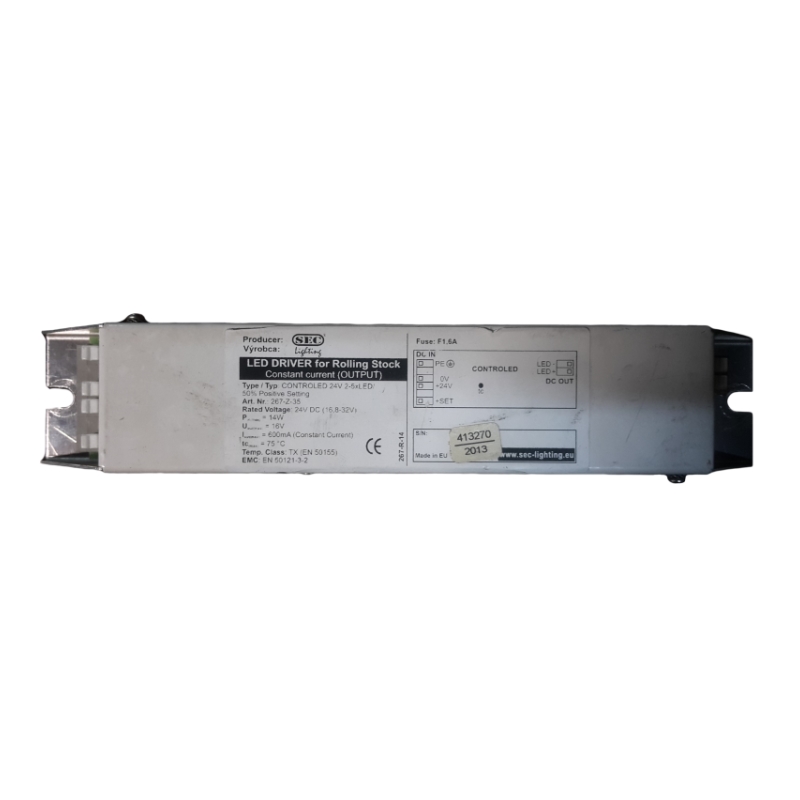

LED Electronic Ballast – CONTROLED
KONTROLLÜ elektronik balastlar (CVS), 40W’a kadar giriş, besleme gerilimi 24V, 72V veya 110V DC (veya müşterinin spesifikasyonuna göre) için aşamalı LED ışık kaynakları için tasarlanmıştır.
SEC CONTROLED Electronic Ballast Features
• Power: 1W-40W
• Power Supply: 24V, 36V, 72V, 110V
• 2-4 dimming levels – SETTING option, e.g. 10%/100% (or customised)
• PWM Stepless dimming: 5%-100%
• Addressable electronic ballasts for LUXMATIC system (optional)
